Recessed Downlight

LED Downlight 4 inch - MT4 Water Repellent

MT series
Features
New construction and remodel series
For office / healthcare / institution / retail
Narrow / Medium distributions beam angle
2700K - 6500K C.C.T
CRI > 90, high color clarity
AC120V input ; Standard TRIAC dimming

Description

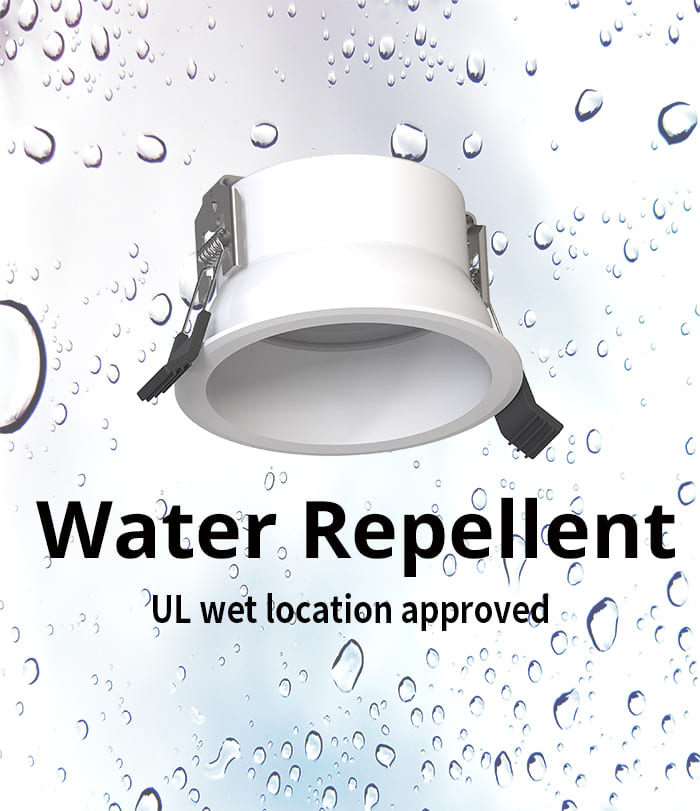

UL wet location approved LED downlight
IC rated (insulated ceiling rated)

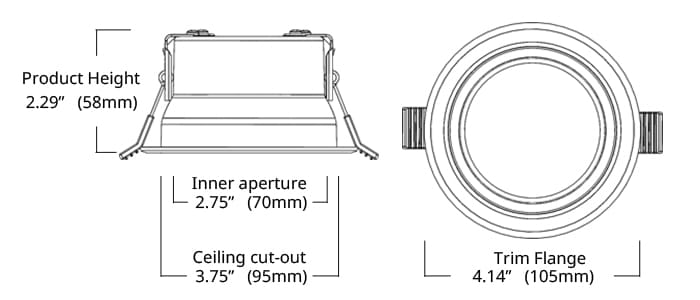

Dimensional and Mounting Details


Ordering Information

Series CRI C.C.T Lumens
MT4 = 4" recessed LED
            Downlight
  9 = 90 CRI   27 = 2700K
  30 = 3000K
  35 = 3500K
  40 = 4000K
  50 = 5000K
  65 = 6500K
  07 = 700 lm
  08 = 820 lm
  (Nominal lumen under 3000K)
Reflector Distribution Finish Driver
4F = 4" Conical reflector   4WW = 4 inch UGR < 19   A = Specular Clear
  H = Semi - Specular
  W = Matte White
  B = Matte Black
TR12 = Triac Dimming 120V






Resources Download


A. Catalog
B. Specification
C. IES Files
